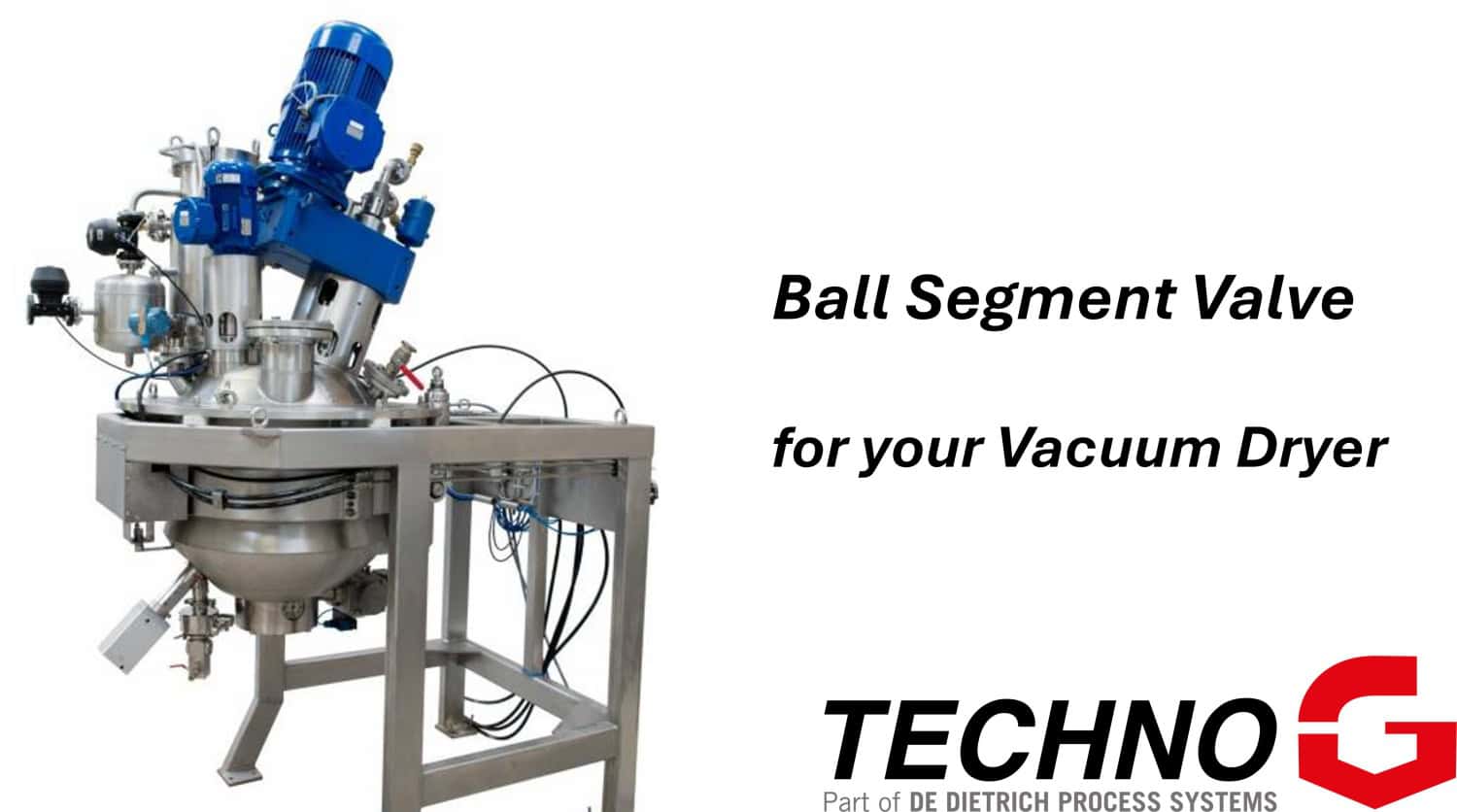

Ball Segment Valves: The Ultimate Solution for Sealing Your Vacuum Dryer
When it comes to sealing off a dryer, a fully pressure-tight valve with a full bore is simply the best solution available.
The market offers plenty of shut-off valves, but only one design truly holds up under the demanding combination of pressure, vacuum, high temperatures, and the need for an unobstructed full bore passage: the Ball Segment Valve.
Why the Ball Segment Valve stands out:
- Guaranteed tight closure — thanks to its inflatable seal, the valve delivers a fully reliable shut-off, even under high pressure or vacuum conditions
- Full bore design — ensures unobstructed product discharge, optimizing flow and preventing blockages
- No dead areas — a sanitary design that promotes hygiene and efficiency, from vacuum drying to pressurized process reactors
- cGMP-conform and CIP-able — meeting strict pharmaceutical standards while remaining easy to clean in place
- Excellent reliability and long operating life — precision-engineered for a vacuum-tight seal that holds up to demanding process conditions

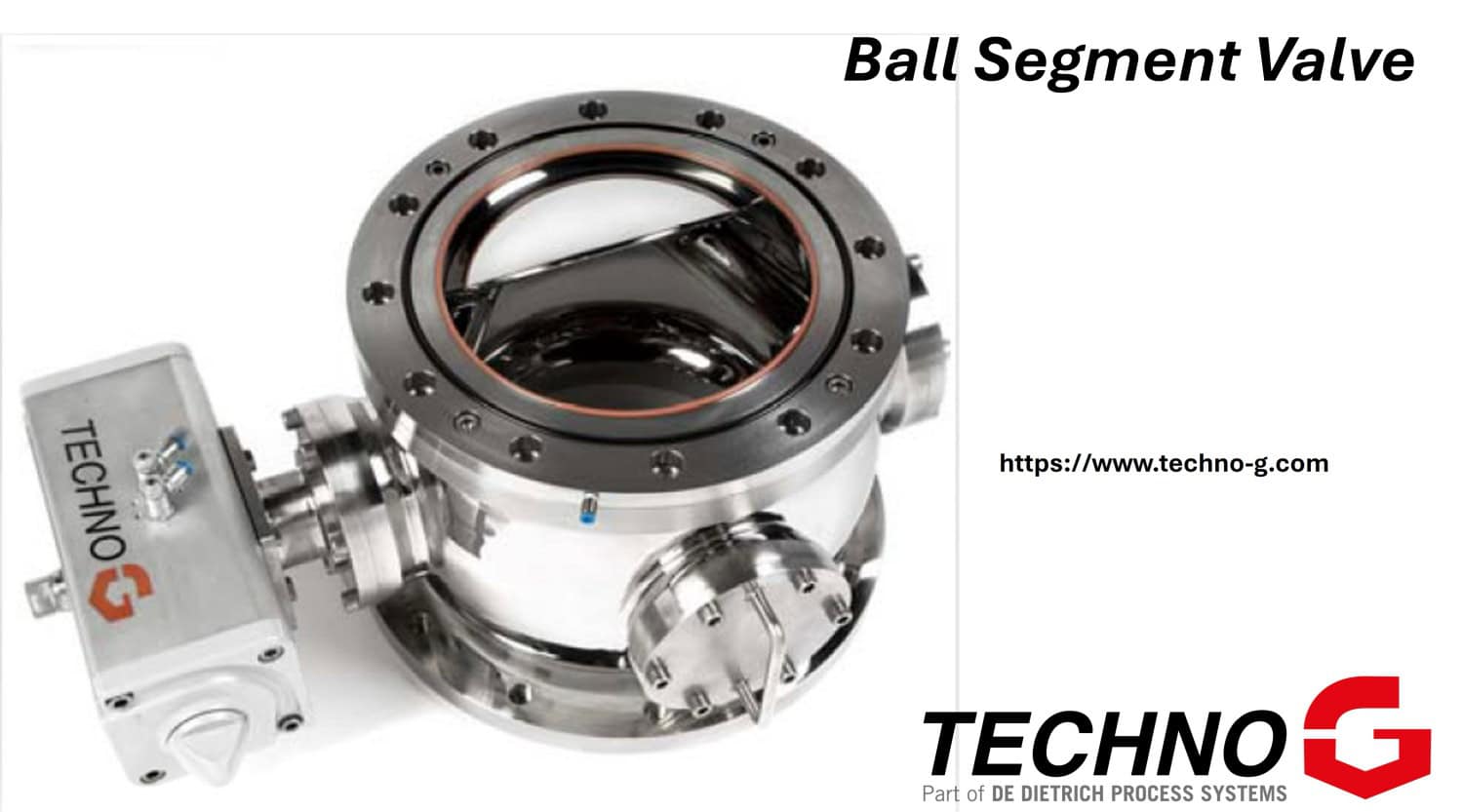

The inflatable seal is central to the valve’s performance: its special geometry enables long-term, reliable sealing against a wide range of solids, and it is available in multiple seal materials to match your specific process — including EPDM White, EPDM Black, Viton White, Viton Black, and Perlast FFKM.
For additional information, visit our Ball Segment Valve page.
Download our free whitepaper
"Exploring Coldspray 3D Printing For Ball Segment Valves"

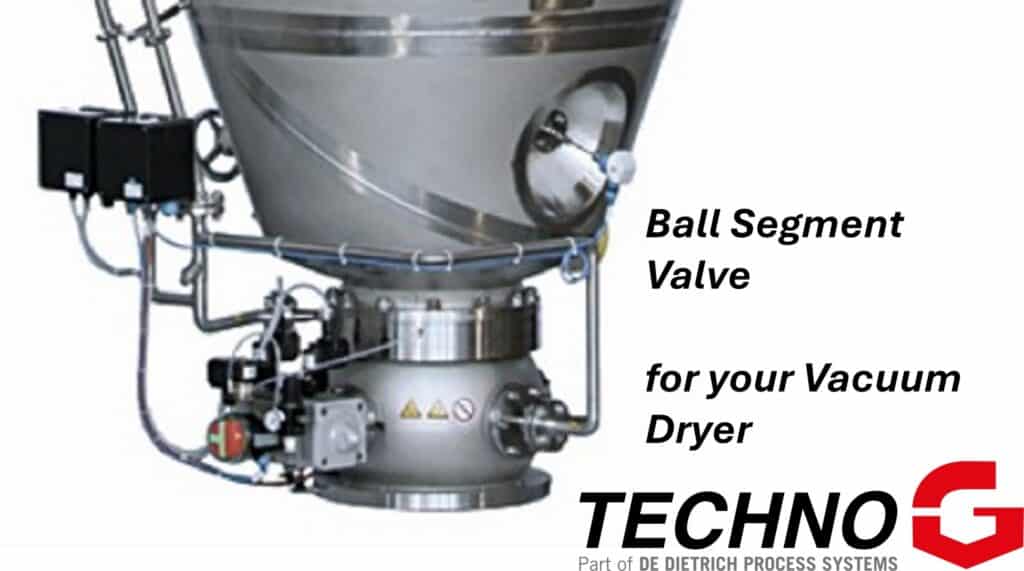

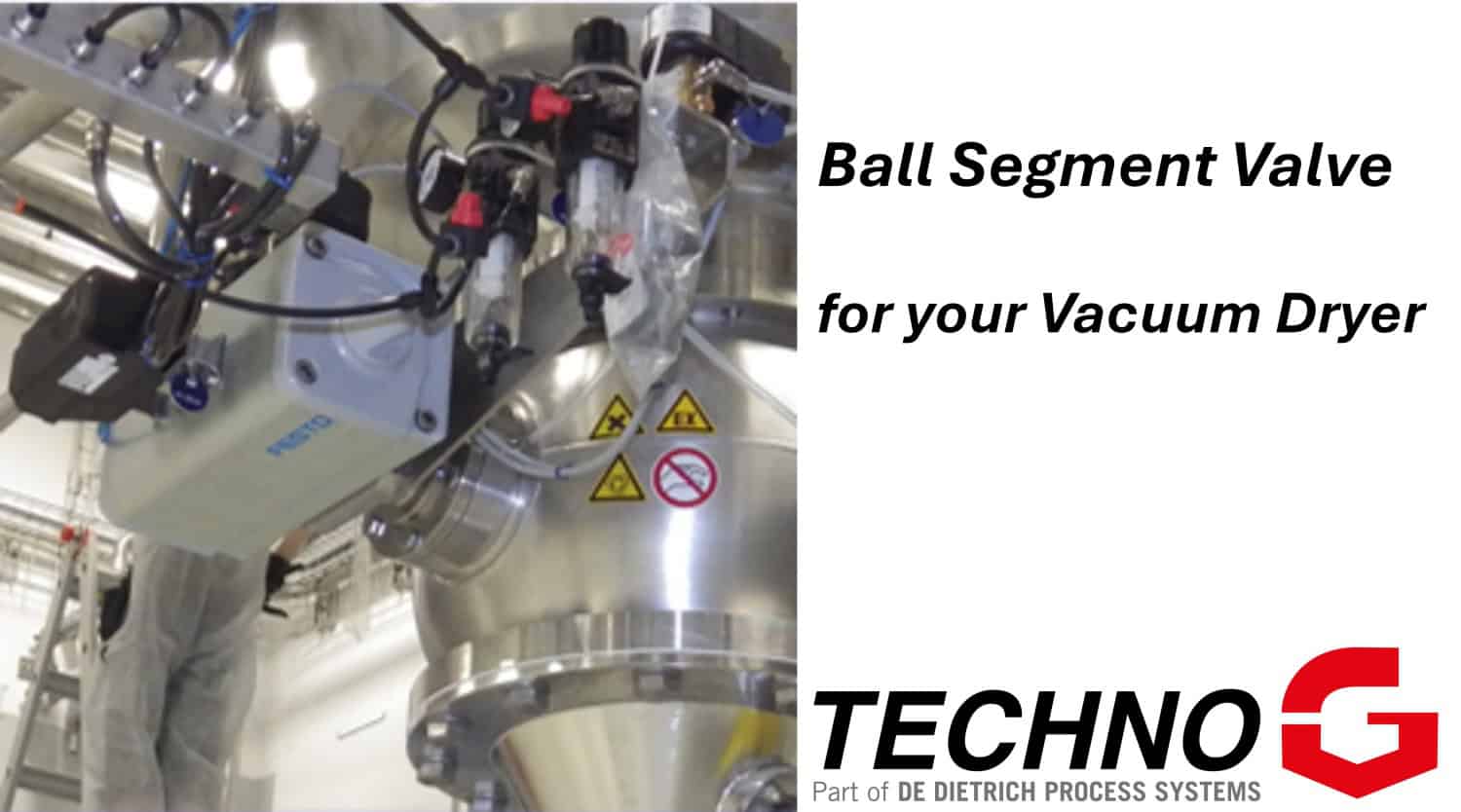

The Techno-G Ball Segment Valve (BSV) is a versatile solution for pharmaceutical and fine chemical processes, handling a variety of solids. Ideal for vacuum dryers, reactors, and centrifuges, it serves as both an inlet and discharge valve. It handles non-free flowing, abrasive, or moist and adhesive products, providing a vacuum and pressure- tight seal. Its cGMP-compliant, corner-free design allows the ball segment to move clear of the product flow path when opened. The design minimizes dead-space in the process area and can be customized with non-DIN flange connections for most reactor vessels.
The Techno-G Ball Segment Valve (BSV) is a versatile solution for pharmaceutical and fine chemical processes, handling a variety of solids. Ideal for vacuum dryers, reactors, and centrifuges, it serves as both an inlet and discharge valve. Learn more.
Available sizes:
- Metric range: DN100 up to DN500
- ANSI range: 4″ to 20″
- Custom diameters: available upon request outside the standard range
- Seal materials: EPDM White, EPDM Black, Viton White, Viton Black, Perlast FFKM
- Typical applications: vacuum drying, pressurized process reactors, solids discharge
Curious about the exact dimensions and specifications for your application? Check out the full size range and technical details, or request a customized quote directly.
